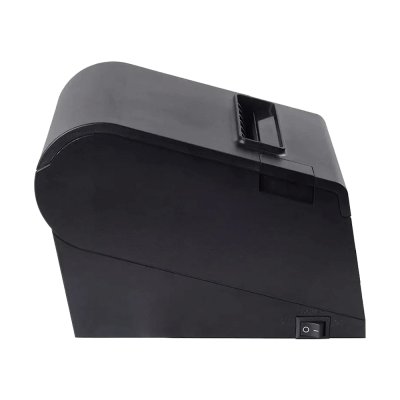

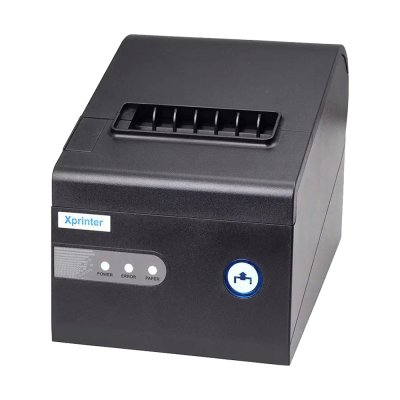

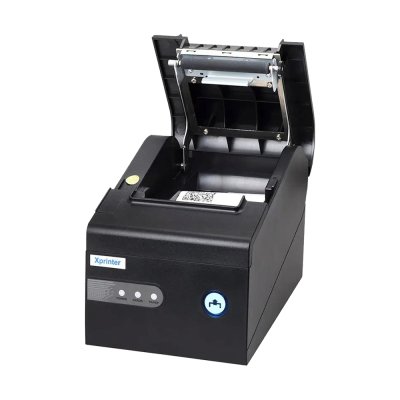

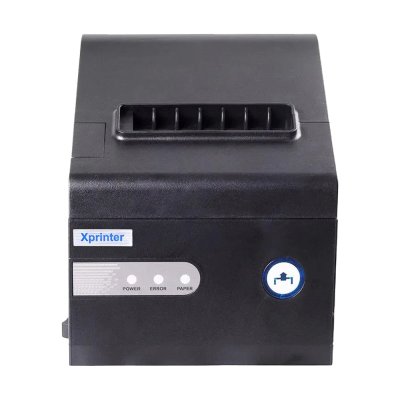

Xprinter C260K Thermal Receipt Printer (USB + Serial + LAN)



แบรนด์ / โมเดล

Brand : Xprinter
Model : C260K (USB+Serial+Lan)

ข้อมูลจำเพาะ

• Print Method : Direct thermal

• Processor :N/A

• Memory : Buffer 2048 Kbytes

• Flash 256 Kbytes

• Resolution : 203 DPI

• Print Speed : 300 mm/s Max.

• Print Width : 72mm/ 76mm/ 80mm/ 64mm/ 48mm/ 52mm
  Column capacity 576 dots/line (adjustable by command)

  Line spacing 3.75mm (Adjustable by commands)

• Print Length : N/A

• Media : Paper width : 58±0.5mm / 79.5±0.5mm

• Ribbon : None

• Display Panel : N/A

• Sensor : Auto cutter : Partial

• Font
  Column number
  80mm paper : Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/ Chinese,traditional Chinese - 21 columns or 24 columns
  Character size
  ANK, Font A : 1.5x3.0mm (12x24 dots) Font B : 1.1x2.1mm (9x17 dots) Chinese, traditional Chinese : 3.0x3.0mm (24x24 dots)
  Extension character sheet
  PC347 (Standard Europe), Katakana, PC850 (Multilingual), PC860 (Portuguese), PC863 (Canadian-French), PC865 (Nordic), West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866 (Cyrillic#2), PC852 (Latin2), PC858, IranII, Latvian, Arabic, PT151 (1251)




• Barcode
  1D Barcode : UPC-A / UPC-E / JAN13 (EAN13) / JAN8 (EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128
  2D Barcode : QR Code / PDF417

• Graphics : N/A
  System Support : Emulation : ESC / POS

Driver : Windows / JPOS / Linux / Android / Mac / OPOS
Utility : Windows & Linux test Utility
SDK : iOS / Android / Windows

การเชื่อมต่อ

• Interface :USB / Serial / Lan

  กำลังไฟ


• Power Supply

• Power adaptor
  Input : AC110V/220V, 50~60Hz
  Output : DC 24V/2.5A

  ข้อมูลทั่วไป


• Dimension (cm)
  (W x L x H) : 19.00 x 14.50 x 15.00 cm

• Package Dimension (cm)
  (W x L x H) : 17.00 x 19.00 x 17.00 cm

• Net Weight (kg)
  1.70 kg

• Gross Weight (kg)
  2.34 kg

• Volume (cm³)
  5,491.00 cm³

• Special Features
  Cutter life : 1.5 million cuts
  Printer head life : 150 KM
  Enviroment

• Operation environment
  Temperature (0?45?)  humidity(10?80%)


• Storage environment
  Temperature(-10?60?) humidity(10?80%)


 การรับประกัน


• warranty 1 Year
