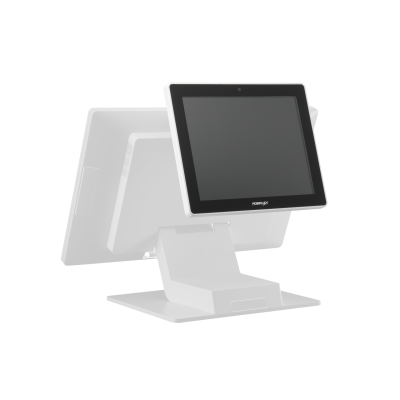

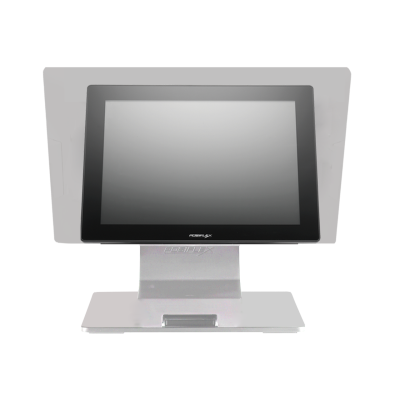

POSIFLEX LM-4010B (Customer Display)

Specification

Model: LM-4010

Display
Viewing Angle: 60/70/70/70 degree (U/D/L/R)
Response Time: 20 ms (Raising + Falling)
Resolution: 1024 × 768
Pixel Pitch: 0.192 (H) × 0.192 (V)
Pixel Arrangement: RGB Vertical Stripe
LCD: 9.7" TFT LCD
Interface: VGA
Contrast Ratio: 500:1
Brightness: 350 nits
Active Area: 196.61 (H) × 147.46 (V)
Specification
Power Supply: 12V from Posiflex terminal VGA port
Touch
Touch Type: –
Interface: –
Support
System Supported: RT Series
VESA Mounting Support: –
Options
Options: –
