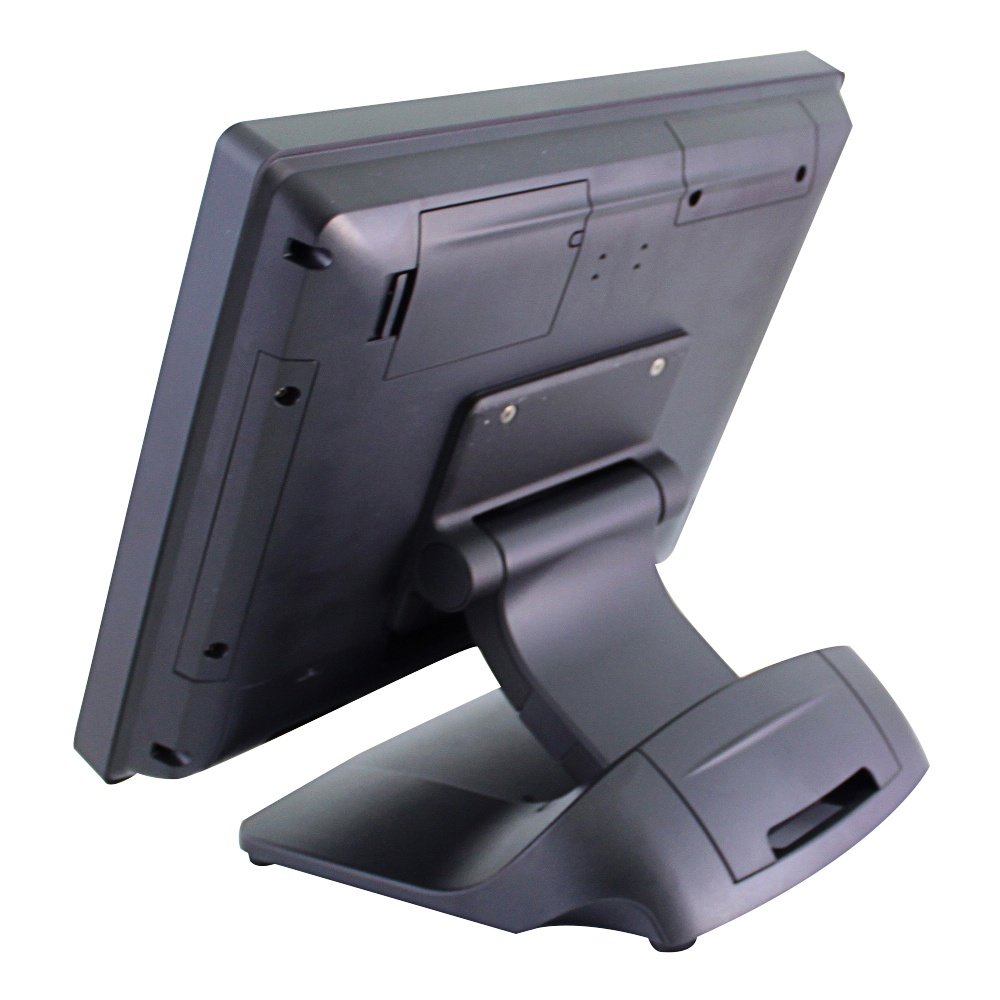

Posiflex PS-3415E

Share

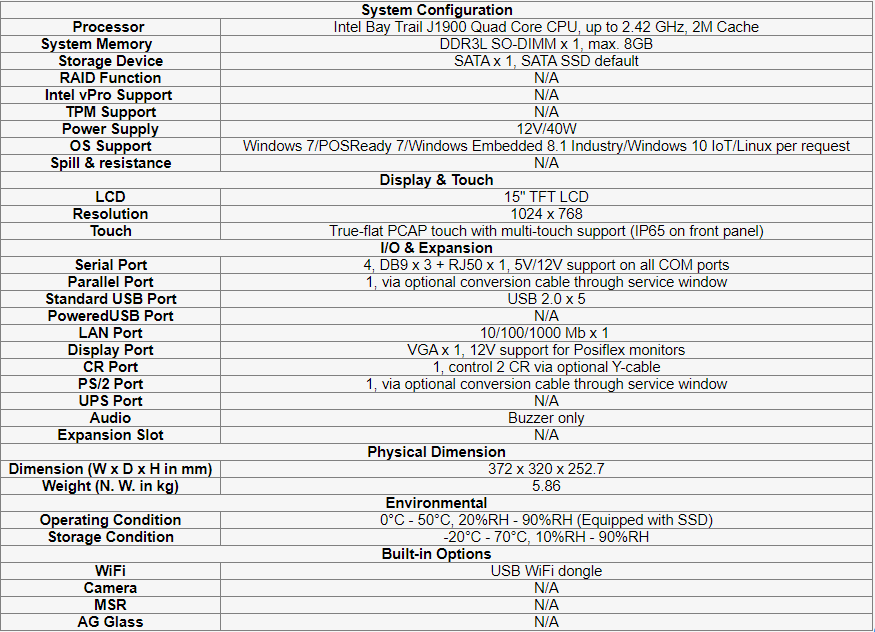

system Configuration
Processor  :  Intel Bay Trail J1900 Quad Core CPU, up to 2.42 GHz, 2M Cache
System Memory  :  DDR3L SO-DIMM x 1, max. 8GB
Storage Device  :  SATA x 1, SATA SSD default
RAID Function  :  N/A
Intel vPro Support  :  N/A
TPM Support  :  N/A
Power Supply  :  12V/40W
OS Support  :  Windows 7/POSReady 7/Windows Embedded 8.1 Industry/Windows 10 IoT/Linux per request
Spill & resistance  :  N/A

Display & Touch
LCD  :  15" TFT LCD
Resolution  :  1024 x 768
Touch  :  True-flat PCAP touch with multi-touch support (IP65 on front panel)

I/O Expansion
Serial Port  :  4, DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports
Standard USB Port  :  USB 2.0 x 5
Parallel Port  :  1, via optional conversion cable through service window
PoweredUSB Port  :  N/A
LAN Port  :  10/100/1000 Mb x 1
Display Port  :  VGA x 1, 12V support for Posiflex monitors
CR Port  :  1, control 2 CR via optional Y-cable
PS/2 Port  :  1, via optional conversion cable through service window
UPS Port  :  N/A
Audio  :  Buzzer only
Expansion Slot  :  N/A

Physical Dimension
Dimension (W x D x H in mm)  :  372 x 320 x 252.7
Weight (N. W. in kg)  :  5.86
